Model & OS

Model

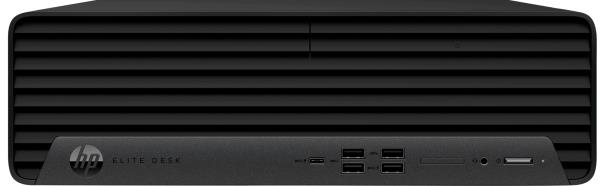

Elite SFF 800 G9

Installed OS

Windows® 11 Pro

Chassis

Case Type

Small Form Factor

Processor

Processor Type

Intel®

Processor Speed

Core™ i5-12600 3.30 GHz

Processor Cache

25 MB L3 cache

Chipset

Intel® Q670 (vPro)

Memory

Memory Type

DDR5

Memory Std.

16 GB

Memory Speed

4800 MT/s.

Memory Slots

4 x DIMM

Storage

Optical Storage

DVD-Writer

SSD Drive

512 GB

Graphics

Graphic Controller

Intel® Iris® Xe Graphics

Display

Monitor

Monitor Not Included

Net/Communication

Wireless

Intel® Wi-Fi 6E AX211 (2x2)

Bluetooth

Bluetooth® 5.2 combo

Audio

Sound

Realtek ALC3252 codec, universal audio jack with CTIA and OMTP headset support

Ports / Interfaces

USB Ports

4 x SuperSpeed USB Type-A 10Gbps signaling rate
1 x SuperSpeed USB Type-C® 20Gbps signaling rate
3 x SuperSpeed USB Type-A 5Gbps signaling rate
3 x USB Type-A 480 Mbps

Audio Ports

1 x headphone/microphone combo
1 x audio-in/out

Display Port

2 x DisplayPort 1.4

HDMI

1 x HDMI 1.4

RJ 45

1 x RJ-45

Dimensions

Height

10 cm (3.94 inches)

Width

33.8 cm (13.31 inches)

Depth

30.8 cm cm (30.80 cm cm)

Weight

5.4 kg (11.90 lb)

Green Certificates

Energy Star Certified

Yes

Epeat

Gold

Green Compliant

Yes

TCO

TCO 9
