Introduction

MAXIMUM SPEED AND SECURITY. JUST THE RIGHT SIZE.

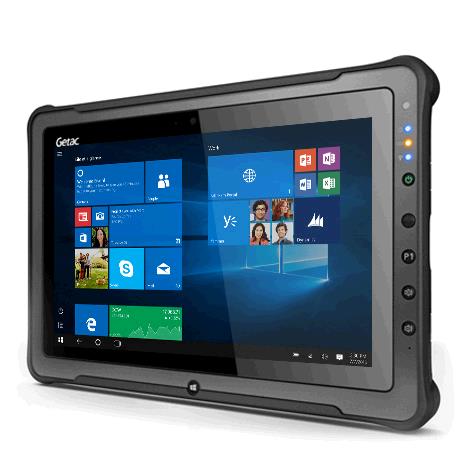

The award-winning F110 is a true revolution in rugged tablet computing. The F110 combines best-in-class performance, industry-leading security, a large 11.6” widescreen display and
a thin and light design that redefines rugged mobility.

Thin and Light

Designed to be about the size of a typical piece of paper, the new F110 rugged tablet breaks new ground with its large 11.6” display, 6th generation processors, amazing graphics and dual batteries. It’s the thinnest and lightest fully rugged tablet we’ve ever built.

LumiBond® 2.0: Better, Brighter, Stronger.

The F110 takes advantage of our revolutionary LumiBond 2.0 touchscreen technology, which bonds the display glass with the touch panel and LCD, creating a single pane that is more durable and readable. It features four advanced touch modes (Touch/Rain, Glove or Pen mode, plus an optional Digitizer mode), and the included hard-tip stylus enables you to capture signatures and take more precise notes on drawings, maps, or forms.

Brilliant 11.6” Large HD Display.

Most rugged tablets choose either a large display or a compact design. We chose both. With a large 11.6” widescreen display, the F110 is just the right size, providing plenty of real estate to run Windows and your apps on.

Dual Battery for Limitless Power.

One of the best features of the F110 is one of the simplest. Instead of one single removable battery, we built the F110 to have two hot-swappable batteries for potentially infinite battery life. This allows you to remove one of the two rechargeable batteries and replace it with a fresh battery without ever shutting down.

Security Redefined.

Experience a robust suite of security features, including multi-factor
authentication, to protect against malicious threats and intrusions.

Built To SurviveTM.

The F110 was engineered to protect the tablet against drops, shocks, spills, vibration, dust, liquid and more. The F110 has been independently tested and certified to MIL-STD 810G, IP65 and MIL-STD-461F standards.

Display

Display diagonal

29.5 cm (11.6")

Display resolution

1366 x 768 pixels

Display technology

LCD

Display brightness

800 cd/m²

LED backlight

Y

Touch technology

Multi-touch

Touchscreen type

Capacitive

HD type

HD

Native aspect ratio

16:9

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i5

Processor generation

6th gen Intel® Core™ i5

Processor model

i5-6200U

Processor frequency

2.3 GHz

Processor boost frequency

2.8 GHz

Processor cores

2

Processor threads

4

Processor cache

3 MB

Bus type

QPI

Conflict-Free processor

Y

Graphics & IMC lithography

14 nm

Processor cache type

Smart Cache

Processor code

SR2EY

Processor codename

Skylake

Processor lithography

14 nm

Processor operating modes

64-bit

Processor package size

42 X 24 mm

Processor series

Intel Core i5-6200 series

Stepping

D1

Supported instruction sets

SSE4.1,SSE4.2,AVX 2.0

System bus rate

4 GT/s

Tjunction

100 °C

Thermal Design Power (TDP)

15 W

Thermal Monitoring Technologies

Y

Configurable TDP-down frequency

0.8 GHz

PCI Express configurations

1x4,4x1

Memory

Internal memory

8 GB

Internal memory type

DDR4-SDRAM

Maximum internal memory

16 GB

Storage

Internal storage capacity

256 GB

Storage media

SSD

Graphics

Graphics card family

Intel

Graphics card

HD Graphics 520

Audio

Built-in speaker(s)

Y

Built-in microphone

Y

Camera

Rear camera

Y

Rear camera type

Single camera

Rear camera resolution (numeric)

8 MP

Auto focus

Y

Front camera

Y

Network

Bluetooth

Y

Bluetooth version

4.2

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

Wi-Fi 5 (802.11ac)

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

HDMI ports quantity

1

Headphone connectivity

3.5 mm

Combo headphone/mic port

Y

DC-in jack

Y

Design

Device type

Full-size tablet

Form factor

Slate

Product colour

Black

Protection features

Dust resistant, Shock resistant, Splash proof, Vibration proof, Water resistant

Performance

Accelerometer

Y

Barcode reader

Y

Trusted Platform Module (TPM)

Y

Security

Cable lock slot

Y

Cable lock slot type

Kensington

Software

Platform

Windows

Operating system installed

Windows 10 Pro

Processor special features

Intel® Small Business Advantage (Intel® SBA)

Y

Intel® Wireless Display (Intel® WiDi)

Y

Intel® Turbo Boost Technology

2.0

Intel® Hyper Threading Technology (Intel® HT Technology)

Y

Intel® My WiFi Technology (Intel® MWT)

Y

Intel® Identity Protection Technology (Intel® IPT)

Y

Intel® Smart Response Technology

Y

Intel® Quick Sync Video Technology

Y

Enhanced Intel SpeedStep Technology

Y

Intel® Clear Video HD Technology (Intel® CVT HD)

Y

Intel Clear Video Technology

Y

Intel® Insider™

Y

Intel® InTru™ 3D Technology

Y

Embedded options available

N

Execute Disable Bit

Y

Idle States

Y

Intel 64

Y

Intel® AES New Instructions (Intel® AES-NI)

Y

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Y

Intel Enhanced Halt State

Y

Intel Flex Memory Access

Y

Intel Identity Protection Technology version

1.00

Intel® Secure Key

Y

Intel Secure Key Technology version

1.00

Intel Small Business Advantage (SBA) version

1.00

Intel® Smart Cache

Y

Intel Smart Response Technology version

1.00

Intel Software Guard Extensions (Intel SGX)

Y

Intel Stable Image Platform Program (SIPP)

N

Intel Stable Image Platform Program (SIPP) version

0.00

Intel Trusted Execution Technology

N

Intel TSX-NI

N

Intel TSX-NI version

1.00

Intel Virtualization Technology (VT-x)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel® OS Guard

Y

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

2160 mAh

Battery voltage

11.4 V

Battery life (max)

12 h

Power

AC adapter power

65 W

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Weight & dimensions

Width

314 mm

Depth

207 mm

Height

24.5 mm

Weight

1.49 kg

Packaging content

AC adapter included

Y

Operational conditions

Operating temperature (T-T)

-21 - 60 °C

Storage temperature (T-T)

-51 - 71 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Other features

Processor socket

LGA 1356 (Socket B2)

Processor ARK ID

88193
