Introduction

Consistent Image Clarity

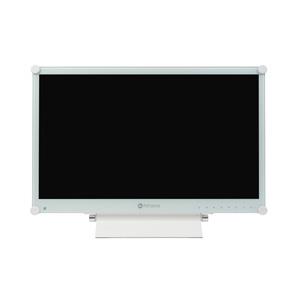

The MX-Series is compliant with the DICOM Part 14 standard specifications. This calibration function corrects gamma and luminance to achieve the smooth grayscale that is required for the accurate and consistent appearance of clinical data and other review images.

Easy to Clean and Reliable Design
The anti-acid and anti-alkali coating treatment of the NeoV Optical Glass help the MX-Series withstand alcohol and other commonly used cleaning solutions. With the displays also bolstered by metal casing, this proprietary glass technology shields them from scratches and other damage.

Versatility and Multitasking
Multiple signal source options, including HDMI and DisplayPort 1.2, offer the versatility for the MX-Series to integrate with other instruments. Its broad connectivity enables the PIP/PBP capability that makes multitasking possible-studying different images or matching medical records-in a single display.

Medical-Grade Safety Certification
The MX-Series adopts a specially designed low-voltage medical-grade power supply to ensure safety, performance, and reliability in any professional medical environment. Compliance with the EN/IEC 60601-1 standards ensures their safe and reliable performance in demanding medical settings.

Display

Display diagonal

54.6 cm (21.5")

Display brightness (typical)

250 cd/m²

Display resolution

1920 x 1080 pixels

Response time

5 ms

HD type

Full HD

Display technology

LCD

Screen shape

Flat

Supported graphics resolutions

1920 x 1080 (HD 1080)

Contrast ratio (typical)

1000:1

Contrast ratio (dynamic)

2000000:1

Viewing angle, horizontal

170°

Viewing angle, vertical

160°

Display number of colours

16.78 million colours

3D

N

Panel type

TFT

Pixel pitch

0.2482 x 0.2482 mm

Digital horizontal frequency

24 - 82 kHz

Digital vertical frequency

50 - 75 Hz

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

Multimedia

Built-in speaker(s)

Y

Number of speakers

2

RMS rated power

4 W

Built-in camera

N

Design

Market positioning

Medical

Product colour

White

Certification

CE, EN60601-1, IEC60601-1, RoHs, WEEE, REACH

Ports & interfaces

Built-in USB hub

N

VGA (D-Sub) ports quantity

1

DVI port

Y

DVI-D ports quantity

1

HDMI ports quantity

1

DisplayPorts quantity

1

Audio input

Y

Ergonomics

Panel mounting interface

75 x 75,100 x 100 mm

Cable lock slot

Y

Cable lock slot type

Kensington

VESA mounting

Y

Height adjustment

N

Thin Client

Thin client installed

N

Power

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

16 kWh

Power consumption (typical)

18 W

Power consumption (standby)

0.5 W

Input current

2.5 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width (with stand)

513 mm

Depth (with stand)

155 mm

Height (with stand)

369 mm

Weight (without stand)

6.9 kg

Packaging data

Cables included

AC, Audio (3.5mm), VGA

Quick start guide

Y

Package width

602 mm

Package depth

212 mm

Package height

476 mm

Package weight

9.5 kg

Other features

AC adapter included

Y

Display

LED

On/off switch

Y

TV tuner integrated

N
